SainSmart CNC 4-Axis Kit with ST-4045 Motor Driver, USB Controller Card, Nema23 Stepper Motor and 24V Power Supply (CNC Kit 6)

buy now

EUR 289,99

[ad_1]

Description:

This is SainSmart new CNC complete kit for engraving DIY. It comes with necessary and basic parts to make your own engraving machine. It is simple and easy to assemble the parts.

Specification:
? 4-axis USB CNC Controller Card 100KHz:
Support MACH3 and other computer software; with USB interface, easy to use and set up. This can control up to five stepper motor driver. It is easy to tell the input status with LEDs. It needs to use external 24V DC power supply to isolate USB and external port, and to make the system more stable.

? ST-4045-A1 Stepper Motor Driver:
- DC power input type:12V~48V(Typical 36V);
- Output current:0.6~4.5A;
- Mircostep: 1,2,4,8,16;
- Protect form : Overheated protection,over-current protection,under voltage protection;
- The maximum pulse rate is 200KHZ;

? Stepper Motor:
Model: 57HS76
Number of phases: 2-phase
Number of lines: 4-wire
Phase voltage: 3.08V
Phase current: 3A
Resistence: 1.1O
Inductance: 3.6mH
Torque: 1.89N.M(270 Oz-in)

? Power Supply: with built-in cooling fan, this also comes with short circuit, overload, over voltage, over temperature protection.
- Working frequency is 25 kHz
- Input Voltage:220V/115V
- Output Voltage:24V
- Output Current:10A
- Output Power:250W

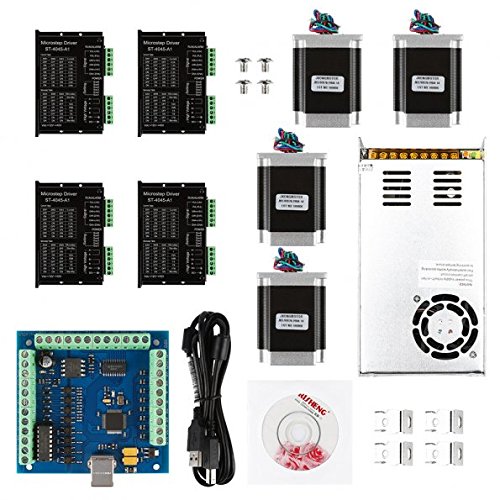

Package List:
1 x 24V/10A switching power supply
4 x ST-4045-A1 Stepper Motor Driver
4 x 57HS76 3A 270 oz/in stepper motor
1 x mach3 4 Axis USB CNC Controller card 100KHz
1 x USB cable
1 x CD
Comes with CNC USB port interface breakout board
